Connect 5 HD sources to 1 HDMI port on your HDTV

This HDMI 5x1 Switch allows you to connect up to 5 HDMI Input video devices to 1 HDMI Output display (HDMI/Monitor)

Features

• The source input signal is easily selected via the IR remote control
• Plug and play - compact and lightweight - no software driver needed
• HDMI 1.4a
• HDCP supported
• Audio:
  -Digital audio
  -Supports uncompressed audio such as LPCM
• Video:
  -Supports Full HD 1080p - beautiful, sharp HDTV resolutions up to 1080p
• Performance up to 250MHz/2.25Gbps per channel bandwidth
• HDMI cable length range:
  -Input: supports up to 20 meter HDMI cable without lost of video quality

Compatibility

• Windows
• Mac

• What is in the box?

  • HDMI switch
  • IR remote control
  • IR extender receiver
  • AC Adapter (UL)
• Troubleshooting

  • The AC adapter comes with the product.
  • But if your HDMI cable is less than 10M (30 feet), the AC Adapter is not needed.
  • Remote control usage -- please check on the following:

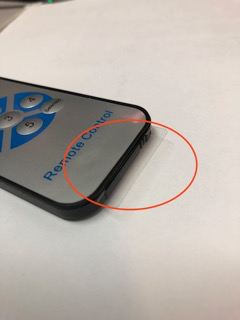

    • 1) Make sure the small plastic slip on the remote is removed:



    • 2) Be sure to connect the IR extender receiver to the switch:

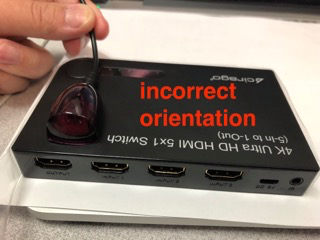

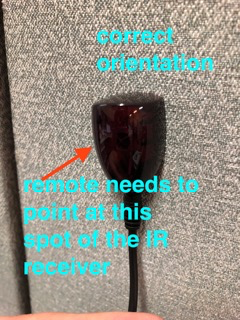

    • 3) To ensure the remote and the IR extender receiver work correctly, please orient the IR extender receiver correctly:


• Product brochure (PDF)
