Connect 3 HD sources to 1 HDMI port on your HDTV

This HDMI 3x1 Switch allows you to connect up to 3 HDMI Input video devices to 1 HDMI Output display (HDMI/Monitor)

Features

• The source input signal is easily selected via the IR remote control
• Plug and play - compact and lightweight - no software driver needed
• HDMI 1.4a
• HDCP supported
• Audio:
  -Digital audio
  -Supports uncompressed audio such as LPCM
• Video:
  -Supports Full HD 1080p - beautiful, sharp HDTV resolutions up to 1080p
• Performance up to 250MHz/2.25Gbps per channel bandwidth
• HDMI cable length range:
  -Input: supports up to 20 meter HDMI cable without lost of video quality
  -Output: supports up to 3 meter HDMi cable without lost of video quality (The connected device should support minimum 120mAh 5V power)
• Note: If you need to connect over a distance greater than the range specified above, then an AC Adapter is required (please contact Cirago about purchasing a separate AC Adapter)
• Note: AC Adapter not included

Compatibility

• Windows
• Mac

• What is in the box?

  • HDMI switch
  • IR remote control
  • IR extender receiver
• Troubleshooting

  • The AC adapter DOES NOT comes with the product.
  • But if your HDMI cable is less than 10M (30 feet), the AC Adapter is not needed.
  • Only a handful of our customers need the AC adapter. If you really need one we can try to find one for you as we do not normally carry that in our inventory.
  • Remote control usage -- please check on the following:
    • 1) Make sure the small plastic slip on the remote is removed:

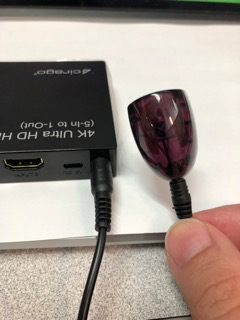

    • 2) Be sure to connect the IR extender receiver to the switch:



    • 3) To ensure the remote and the IR extender receiver work correctly, please orient the IR extender receiver correctly:


• Product brochure (PDF)
